DATA SHEET PW100-T6 2PC


FAA-PMA KIT Part Numbers 26581-01, -02
Replacements for OEM PNs 3121657-01
and 3121657-02

RdF Corporation is a manufacturer of quality temperature sensors and has been a supplier to the aerospace, nuclear, and aircraft industries since 1955. RdF products are in service aboard aircraft, spacecraft; in satellites, laboratory equipment and nuclear and fossil fuel powered generating stations; on military land vehicles and surface/sub-surface sea vessels; and in a variety in industrial process plants and equipment.

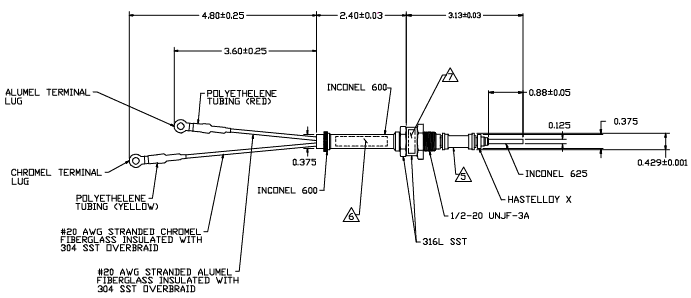

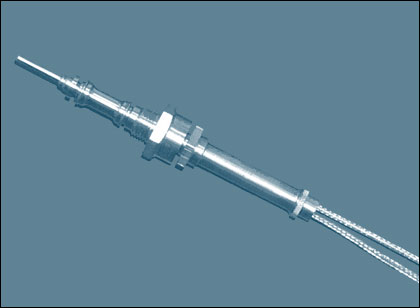

This thermocouple sensor has been designed, qualified, and manufactured to be interchangeable with OEM part numbers on the listed PW100 Series engines.

RdF Kit PN 26581-01
RdF Kit PN 26581-02
• PW118/PW118 • PW119B/PW119C
• PW 120A/PW121 • PW120
• PW123/PW123B • PW121/PW121A
• PW123/PW123B/PW123E • PW124B
• PW125B • PW127/PW127E
• PW126A



Teflon® and Kapton® are registered trademarks of Dupont


Sensor Type
Type K (Chromel/Alumel) Thermocouple
(Special Limits of Error).

Junction Type
Ungrounded





Temperature Range
-40° to +1800°F

Insulation Resistance
>2 Megohms @ 45 VDC

Response Time
<2 Seconds


  KIT PN #26581-01
CONTAINS
  RdF
PN
  REPLACEMENT FOR OEM
KIT PN 3121657-01

  Thermocouple
Adaptor
Gasket
Gasket
  26580
55108
55161
55162
  3041279
3043415
ST1140-13
ST1140-09


  KIT PN #26581-02
CONTAINS
  RdF
PN
  REPLACEMENT FOR OEM
KIT PN 3121657-02

  Thermocouple
Adaptor
Gasket
Gasket
Top Sealing Plate
Bottom Sealing Plate
Flat Washer
  26580
55108
55161
55162
55163
55164
55165
  3041279
3043415
ST1140-13
ST1140-09
3120495-01
3120496-01
3025561

NOTE: ALL INDIVIDUAL PARTS ARE APPROVED AND MAY BE PURCHASED SEPARATELY
