DATA SHEET T-JT15D
_
_

RdF PN 26590 FAA-PMA
Replacements for OEM PNs 3120096-01 or 3027329

RdF Corporation is a manufacturer of quality temperature sensors and has been a supplier to the aerospace, nuclear and aircraft industries since 1955. RdF products are in service aboard aircraft, spacecraft; in satellites, laboratory equipment and nuclear and fossil fuel powered generating stations; on military land vehicles and surface/sub-surface sea vessels; and in a variety of industrial process plants and equipment. This thermocouple sensor has been designed to be interchangeable with OEM part numbers on the listed JT15D Series engines.
  Fast Response Air Sensor
_
_ _
_



RdF PN 26590 FAA-PMA
P&W PN 3120096-01 or 3027329
JT15D -1, -1A, -1B, -4, -4B, -4C, -4D, -5, -5A, -5B, -5C, -5D, -5F

_ _
_

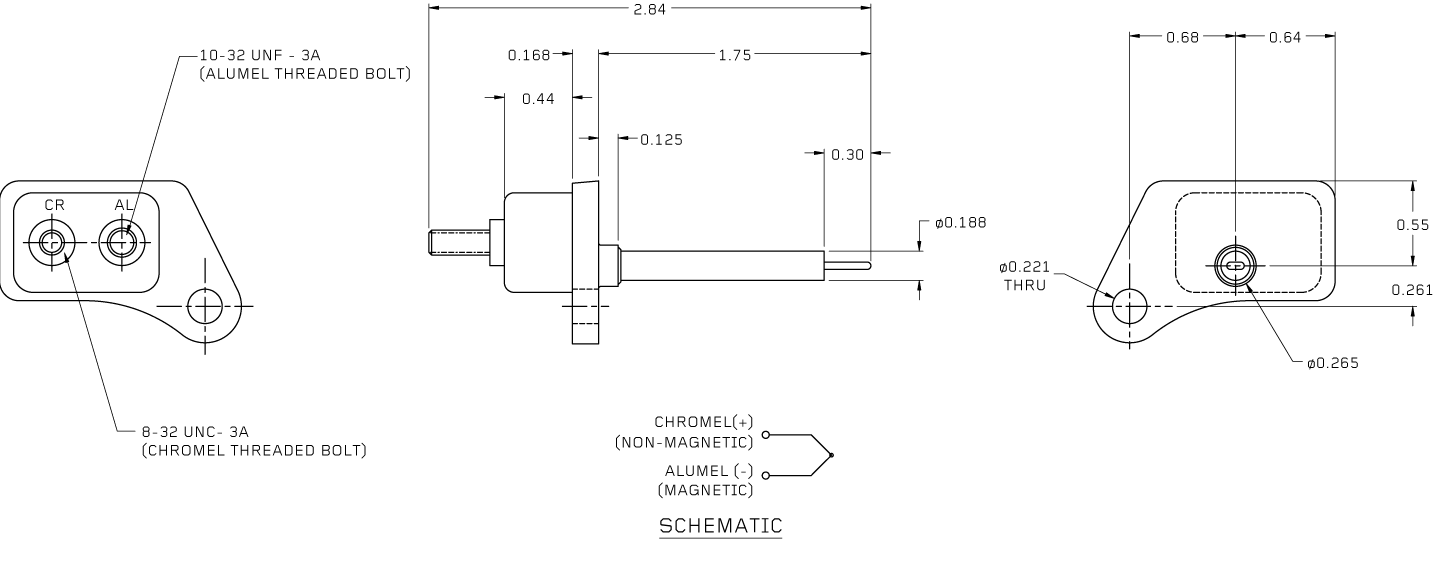

Insertion Length
1.75

Sensing Type
Type K (Chromel/Alumel) Thermocouple
(Special Limits of Error)

Junction Type
Exposed






Temperature Range
–54°C to 816°C
(–65°F to 1500°F)

Insulation Resistance
>100 Megohms @45 VDC

Resistance at 25°C
0.065 to 0.080Ω
