T-77 // THERMOCOUPLE
_ _
_ _
Overview of RdF Temperature Sensor Applications
The Entire RdF Product Catalog, Online, and with Printer-Friendly Versions of Each Data Sheet
Informative Articles with RdF Temperature Sensor Application Information
_
All about RdF Corporation; History, Reps & Distributors, Location
Coming Soon!
Coming Soon!
_


OverviewPerformance Specs Ordering Specs

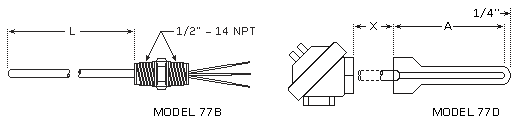

  Dimensional Drawing
77B, 77D

Ordering Specifications
77A
77C
77B
77D
Straight MgO insulated thermocouple probe including 1/4" dia. lead adaptor as required
Straight MgO insulated thermocouple probe with quick disconnect plug and jack
Rigid MgO insulated thermocouple probe with welded 1/2 x 1/2 NPT fitting
Spring Loaded MgO insulated thermocouple probe for mounting in thermowell*
*Note: thermowell not included, see data sheet T-WELLS

SHEATH DIAMETER
2 1/8" ( 77A Requires Transition - 1.75 x 0.25)
3 3/16" (Style A or B only, Dual 77A Requires Transition - 1.75 x 0.25)
4 1/4" (Required for 77D)

SHEATH MATERIAL
S
I
O
316 SS
Inconel 600
Other (77A or C only; no transition)

_ ANSI TYPE THERMOCOUPLE (special limits of error)
Single
J
T
K
E
Dual
JJ
TT
KK
EE

Iron Constantan
Copper Constantan
Chromel Alumel
Chromel Constantan

   PROBE LENGTH (see drawings above)
77A w/o adaptor, “L”= 2" min.
77A w/adaptor, 77B and 77C, “L”=0.5"min.
   STEM LENGTH IN THERMOWELL - see drawings below - Bore Depth “A” in.

   TYPE OF JUNCTION
G Grounded Junction
U Ungrounded Junction
X Exposed Junction (N/A on 77D)

CONNECTION HEAD (see table below)
Code D, No head, Required for 77A and 77C

 PROBE LAG HARDWARE (77D Only) (drawings below)
 (1/2 NPT Fittings, stainless steel unless noted.)
A
Hex Nipple is 3/4" long standard. Specify as “A”, (standard)
BX (Straight Nipple), specify X=1/8", 1/2", 1" + 1" increments
EX (Aluminum Union/Nipple Extension), specify X=min. 3" plus 1" increments
FX Same as EX (stainless union)
GX (Coupling/nipple extension), black iron, Specify X=min. 3" + 1" increments
HX (Union/nipple extension), black iron, specify X=min. 3" + 1" increments
JX (Close nipple, galvanized unsealed parting coupling, nipple extension) black iron, specify x=min. 1 1/2" + 1" increments (shortest “union”)
KX (Straight nipple) black iron, specify x=1/8", 1/2", 1", + 1" incr. (CREDIT)
_
  LEAD LENGTH (Specify in inches)
(4" leads with connection head standard)
(12" Leads with 77A standard)
77B
_
_
4
_
_
S
_
_
K
_
_
4
_
_
U
_
_
A
_
_

4
_
_
Typical write-up for 77D
77A*
_
_
3
_
_
S
_
_
T
_
_
10
_
_
U
_
_
D
_
_
_ _
60
_
_
Typical for 77A (*or 77C) _
77D
_
_
4
_
_
S
_
_
K
_
_
8
_
_
U
_
_
A
_
_
B3
_
_
4
_
_
Typical write-up for 77D _
Lag Hardware
  Lag ALag B and K

Lag ELag F
Lag GLag HLag J
Connection Heads with Terminals
  NEMA 4 w/gasket  Illustrations on Data Sheet T-WELLS/ACCESSORIES
CODE _  to order with sensor:  to order alone:   Conduit Max. Temp
A  Small cast aluminum head  P/N 51590-1   1/2 NPT 125°C
B  High temp. small cast aluminum head  P/N 51590-2   1/2 NPT 260°C
C  Cast Iron head  P/N 51840-1   3/4 NPT 260°C
D  For no connection head specify “D”
E  Large cast aluminum head  P/N 52298-1   3/4 NPT 260°C
F  Economy conduit body  P/N 41438   1/2 NPT 125°C
G  Explosion proof small cast aluminum head  P/N 41333-1   1/2 NPT 125°C
H  High temp. expl. proof small cast alum. head  P/N 41333-2   1/2 NPT 260°C
I  Hinged plastic  P/N 54684   3/4 NPT 125°C
J  Hinged cast aluminum  P/N 54681   3/4 NPT 125°C
K  Din B cast aluminum  P/N 55261   1/2 NPT 100°C
S  Other (please specify when ordering)
T  Transmitter, specify or supply w/head
Terminals: All heads include at least 4 two-screw strap terminations. 6 can be requested in styles “C” and “E”. Style “K” includes 6 two-screw post straps. Styles “A”, “B”, “G” & “H” can have up to 8 screw-in post straps.
_
