MET-CAP// RTD CAPSULES
_ _
_ _
Overview of RdF Temperature Sensor Applications
The Entire RdF Product Catalog, Online, and with Printer-Friendly Versions of Each Data Sheet
Informative Articles with RdF Temperature Sensor Application Information
_
All about RdF Corporation; History, Reps & Distributors, Location
Coming Soon!
Coming Soon!
_
Overview Performance Specs Ordering Specs

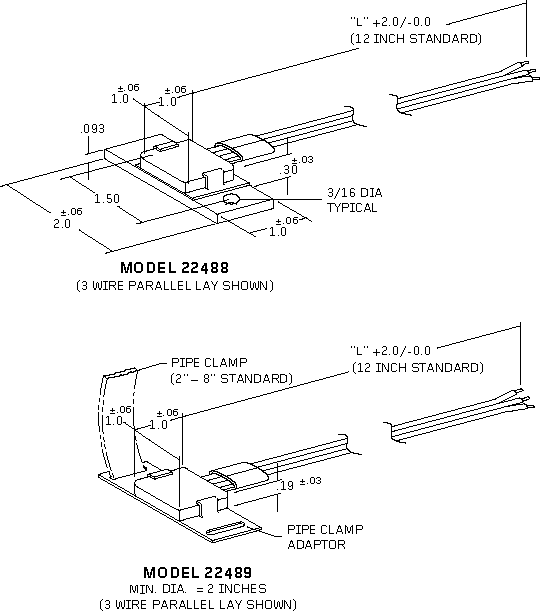

Dimensional Drawing
Ordering Specifications
  22488   Strapon® for bolt down with 3/16, #8 or 4.5 mm
  22489   Strapon® for curved surface >2" minimum dia. with pipe clamp (see ordering data)

  RESISTANCE SPECIFICATION @ 0°C
      1     100 ± 0.50Ω@0°C, a = 0.00391 Reference grade platinum
      2     100 ± 0.22Ω@0°C, a = 0.00391 Reference grade platinum
      3     100 ± 0.50Ω@0°C, a = 0.00385 (IEC 751) International Grade Platinum
      4     100 ± 0.22Ω@0°C, a = 0.00385 (IEC 751) International Grade Platinum

  NUMBER OF LEADS
      A     3 Wire
      B     4 Wire

  PIPE CLAMP - 22489 ONLY
      1     Pipe diameter 2" to 8" (standard)
      2     Pipe diameter 8" to 10"
      3     Pipe diameter 10" to 16"
      4     Pipe diameter 16" to 24"
      5     Pipe diameter 24" to 36"


_
_
22489
_
_
1
_
_
A
_
_
1
_
_
 Typical write-up for 22489 _
