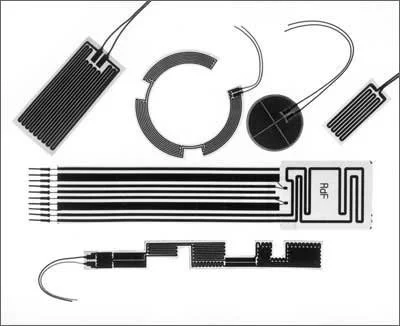

Custom Foil Heaters

Foil heaters can be fabricated to any shape and can be designed to vary the watt density so that the heat is delivered to precise locations. Foil heaters generally use low temperature coefficient foils; however, higher temperature coefficient can be used to provide current limiting. Heaters can be designed to be non-magnetic and/or non-inductive.

Foil heaters provide uniform heat distribution due to their low profile and intimate contact with the surface. This also contributes to faster heating and more reliable heater performance.

Performance Specifications




Operating Temperature Range
–100°C to 200°C (FEP)
–100°C to 350°C (Polyimide)

Insulation
Kapton®/FEP construction
Kapton®/Polyimide construction

Resistance Tolerance
±10%

Watt Density
up to 40 W/in², typical
up to 80 W/in², Polyimide to 200°C

Thickness
0.010" maximum over heater

Flexibility
Greater than 15 mW/°C



Out-gassing
TML¹ <1%, CVCM² <0.1%

Lead Wire
Stranded nickel plated copper,
TFE Teflon® insulation
per MIL-W-16878
Kapton® or fiberglass insulation

Dielectric Strength
1250 VAC

Maximum Size
6" x 11"


1 TML= Total Mass Loss
2 CVCM=Combustible Volatile Condensate Material


Teflon® is a registered trademark of the DuPont Corporation.

Ordering Specifications

Please contact us for quote and supply the following information:

  1. Terminal or wire location.

  2. what type of material will be heated ?

  3. What is the maximum temperature ?

  4. How much time is required to bring the material from ambient to the operating temperature ?

  5. Approximate dimensions of unit or system to be heated.
