Heat Flux Sensors / Micro-Foil®

MICRO-FOIL® HEAT FLUX SENSORS

27036, 20457, 27132, 27133, 27134, 27160, 27170, 27270

Effective with all methods of heat transfer, including radiation, convection, and conduction.
Exclusive full range of sizes from 1206 surface component size to large area arrays.
Linear millivolt output gives the heat transfer rate.
Easily attached to any flat or curved surface and completely non-invasive.
Dual function models measure both heat transfer and surface temperature.
Low cost models with interchangeable output for commercial applications. (i.e. Model 27160 with large area sensor arrays)
Operating temperature range from –300°F (–184°C) to 500°F (260°C).

For precise measurement of heat transfer (loss or gain) through any material surface.

Micro-Foil® Heat Flux Sensor Part Numbers

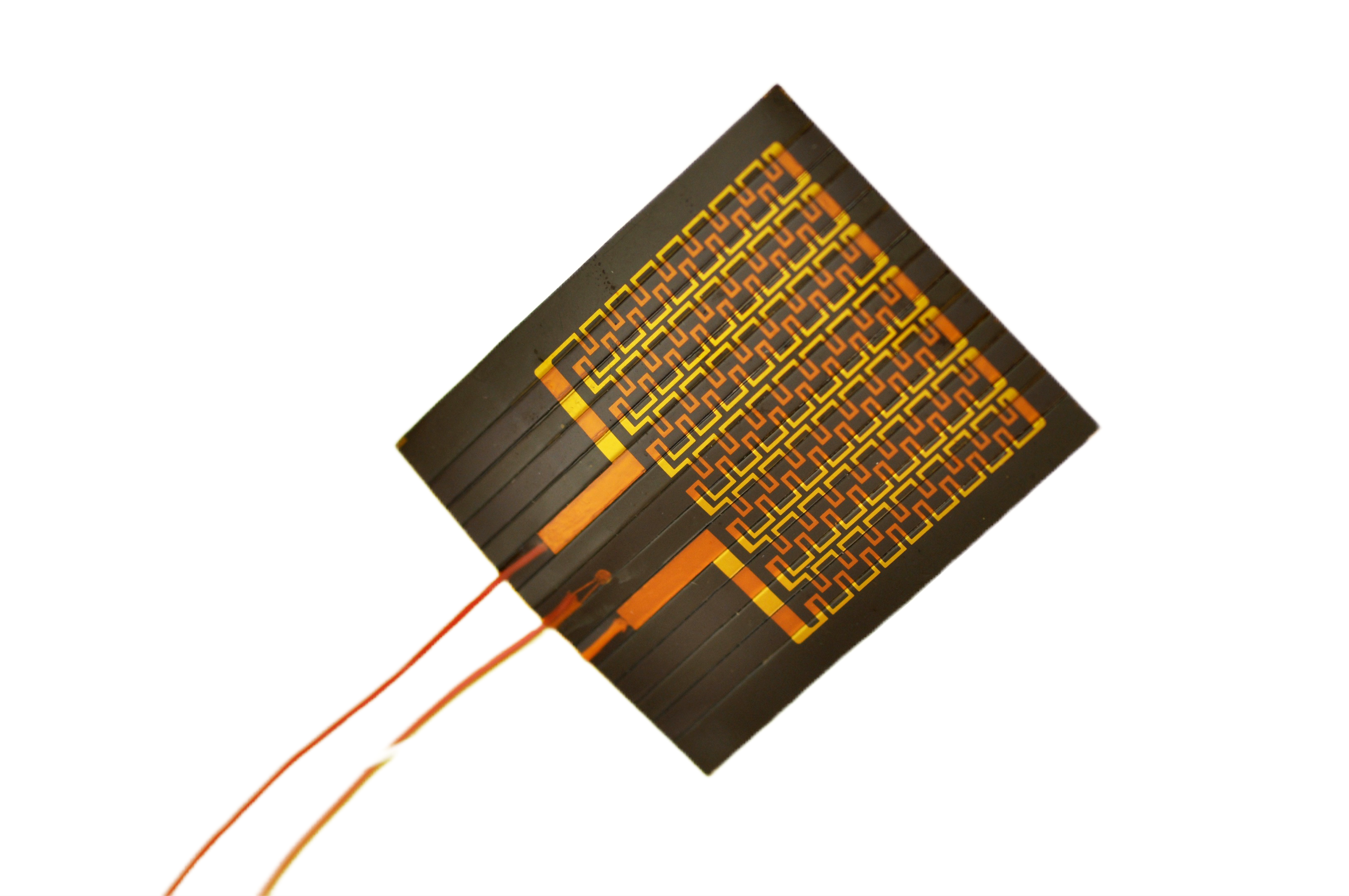

PN 27270-1 pictured

Many thermal R & D, measurement and control applications.

Determining thermal properties of materials.
Flight and ground test heat transfer at on-board sensor
on a passive heat sink. (Examples on Data Sheet
SP-002; Thermal Sensors, Calorimeters/Radiometers)
Aerodynamic wind tunnel studies.
Thermal stress analysis.
Structural heat transfer monitoring.
Process control in heat-treating, rolling-mills and glass production.
Early-alert signal leads measurable temperature change for enhanced control.
Measuring human aerobic activity.
Proving HVAC design and improving EMCS performance.





Part
 Number
  Configuration

 Nominal Sensitivity (αV)
  Maximum
FLux
@<100°F
  ~Time
Constant
Including
Bond(Sec)
  Sensor
Resistance
(Ω max)
  Maximum
 Operating
Temp. (°F)
Net flux ~0
  Nominal
Thickness
(inches)
    Capacitance
(Btu/ft2•°F)
    Impedance(°F)
(Btu/ft2hr)

    Embedded
Thermocouple






 uV/(BTU/ft2hr)
 uV/(W/M2)
  Btu/(s.ft2)
 W/m2

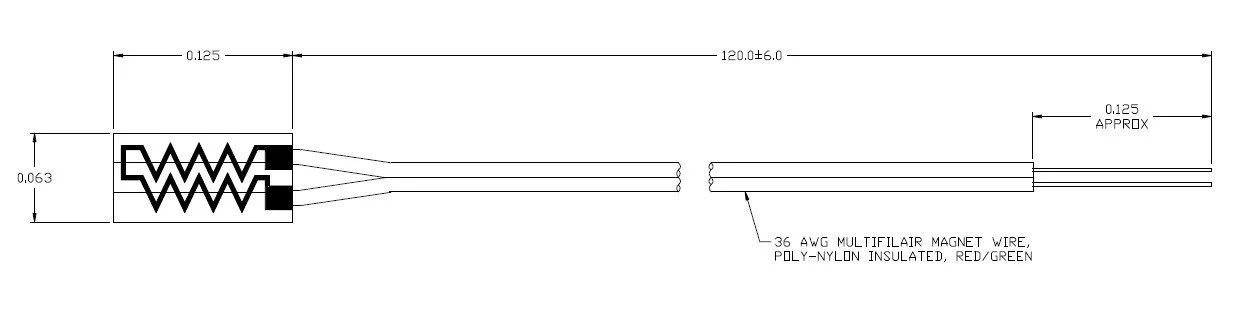

  27132
    (0.06 x 0.12)component size
    0.1
  0.031720997

    9
    102208.8

    0.13
    15
    300
    0.0065
    0.020
    0.007
    n/a

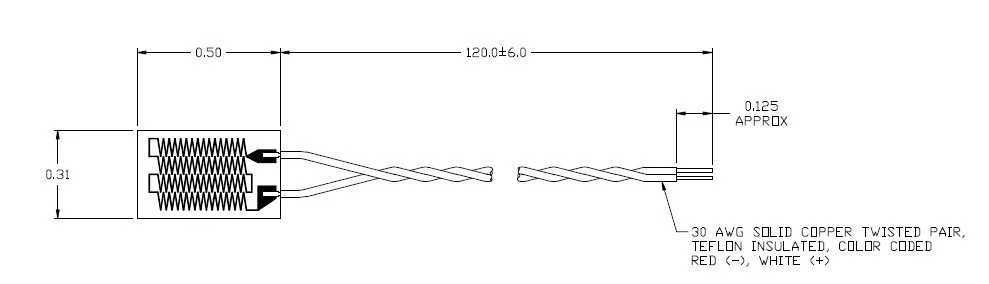

27133-1
27133-2
27133-3
    (0.31 x 0.50)

    1.1
1.8
3.5
  0.348930971
0.570977952
1.110234907

    50
25
10
    567826.9
283913.5
113565.4
    0.07
0.09
0.13
    160
    300
    0.0035
0.0045
0.0065
    0.013
0.015
0.020
    0.004
0.005
0.007
    n/a

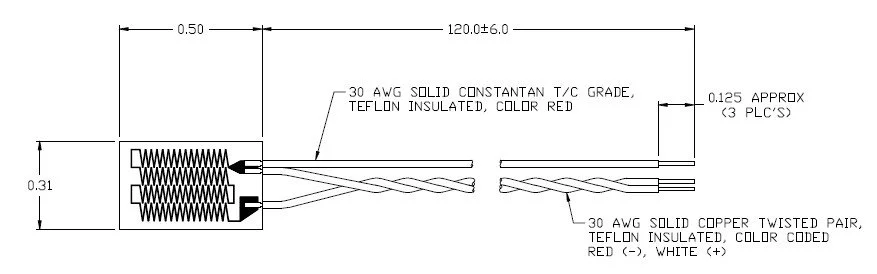

27134-1
27134-2
27134-3
    (0.31 x 0.50 w/TC)

    1.1
1.8
3.5
  0.348930971
0.570977952
1.110234907
    50
25
10
567826.9
283913.5
113565.4
    0.07
0.09
0.13
    160
    300
    0.0035
0.0045
0.0065
    0.013
0.015
0.020

    0.004
0.005
0.007
    Type T


27036-1
27036-2
27036-3
    (0.25 x 0.70 w/TC)
0.15 x 0.08
HF Sensor

    0.1
0.3
1.0
  0.031720997
0.095162992
0.317209973
    50
25
10
567826.9
283913.5
113565.4
    0.05
0.09
0.40
    10
    500
    0.003
0.005
0.012
    0.01
0.02
0.05
    0.003
0.005
0.012
    Type T

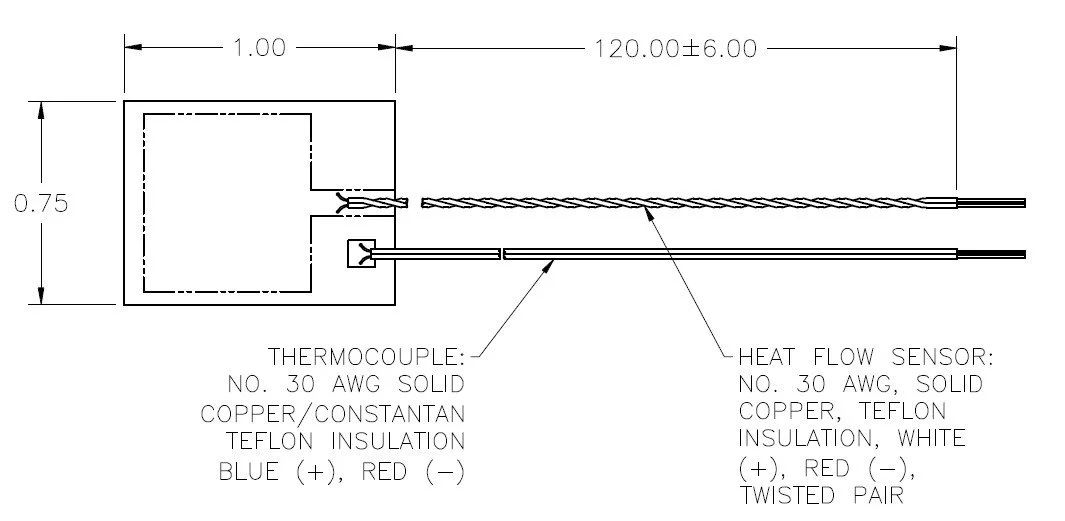

20457-1
20457-2
20457-3
    (0.75 x 1.00 w/TC)

    1.1
3.3
11.0
  0.348930971
1.046792912
3.489309707
    50
25
10
567826.9
283913.5
113565.4
    0.05
0.09
0.40
    100
    500
    0.003
0.005
0.013
    0.01
0.02
0.05
    0.003
0.005
0.012
    Type T


27160-C
-L-A01
on HFS-C
    (0.47 x 1.0, 1.8 total)
Arrays: HFS-C

    2.6*
  0.824745931
    9
102208.8
    0.13
    90
    300
    0.0065
    0.02
    0.007
    n/a


27170-1
27170-2
    ((1.12 x 1.38 w/TC)

    3.0*
6.5
  0.95162992
2.061864827
    9
102208.8

    0.13
    140
175
    300
    0.0065
    0.02
    0.007
    Type K


27270-1
27270-2
    (1.12 x 1.38  w/TC) Permanent black surface

    3.0*
6.5
  0.95162992
2.061864827
    8
90852.3

    0.20
    140
175
    300
    0.007
    0.02
    0.007
    Type K
